| STRIP SOCKET |
 |
SINGLE-ROW .050" (1.27mm) PITCHED |
HDHSF |
PCB STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .050" (1.27mm) PITCHED |
HDHSF (R) |
PCB R/A |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB RIGHT ANGLE MOUNT .110"(2.8mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx. 20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .050" (1.27mm) PITCHED |
HDHSFI |
SMT STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, SMT STRAIGHT MOUNT .169"(4.3mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx. 20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHSF |
PCB STRAIGHT |
.079" (2.0mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHSF (R) |
PCB R/A |
.079" (2.0mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB RIGHT ANGLE MOUNT .110"(2.8mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx. 20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHSFI |
SMT STRAIGHT |
.079" (2.0mm) PITCHED SINGLE-ROW STRIP SOCKET, SMT STRAIGHT MOUNT .169"(4.3mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx. 20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHSE |
CRIMP HOUSING |
.079" (2.0mm) PITCHED SINGLE-ROW STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .020" (.50mm)SQ MALE CONTACTS, .125"(3.18mm) INSU PROFILE TO BE USED W/MHEFT&MHEMT SERIES FEMALE&MALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHEFT |
TERMINAL WIRE-MOUNT |
FEMALE CONTACT W/CRIMP TERMINAL, 360-DEG WALLED TYPE TERMINATING 24-28 AWG WIRES, TO BE USED W/MHSE&MHDE SERIES CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .079" (2.0mm) PITCHED |
MHEMT |
TERMINAL WIRE-MOUNT |
MALE CONTACT W/CRIMP TERMINAL, STAMPED TYPE TERMINATING 24-28 AWG WIRES, TO BE USED W/MHSE&MHDE SERIES CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .100" (2.54mm) PITCHED |
HSF |
PCB STRAIGHT |
.100" (2.54mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .197" (5.0mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx. 20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .100" (2.54mm) PITCHED |
HSF |
PCB STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .100" (2.54mm) PITCHED |
HDHSF |
PCB STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .050" (1.27mm) PITCHED |
HDHSF |
PCB STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .050" (1.27mm) PITCHED |
HDHSF |
PCB STRAIGHT |
.050" (1.27mm) PITCHED SINGLE-ROW STRIP SOCKET, PCB STRAIGHT MOUNT .177"(4.50mm) INSU PROFILE USING TRIFURCATED FEMALE CONTACTS & .020"Wx.008"T(.50mmWx.20mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .098" (2.50mm) PITCHED |
HSCF |
CRIMP HOUSING |
.098" (2.50mm) PITCHED SINGLE-ROW STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .025" (.64mm)SQ MALE CONTACTS, .125"(3.18mm) INSU PROFILE TO BE USED W/HCFT SERIES FEMALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .098" (2.50mm) PITCHED |
HCFT |
TERMINAL WIRE-MOUNT |
FEMALE CONTACT W/CRIMP TERMINAL, SINGLE-LEAF CANTILEVER TYPE TERMINATING 18-24 AWG WIRES, TO BE USED W/HSCF SERIES CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .156" (3.96mm) PITCHED |
HSBF |
CRIMP HOUSING |
.156" (3.96mm) PITCHED SINGLE-ROW STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .045" (1.14mm)SQ MALE CONTACTS, .125"(3.18mm) INSU PROFILE TO BE USED W/HBFT SERIES FEMALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .050" (1.27mm) PITCHED |
HBFT |
TERMINAL WIRE-MOUNT |
FEMALE CONTACT W/CRIMP TERMINAL, SINGLE-LEAF CANTILEVER TYPE TERMINATING 18-24 AWG WIRES, TO BE USED W/HSBF SERIES CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .165" (4.20mm) PITCHED |
HSGF |
CRIMP HOUSING |
.165" (4.20mm) PITCHED SINGLE-ROW STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .045" (1.14mm)SQ MALE CONTACTS, .421"(10.7mm) INSU PROFILE TO BE USED W/HBFT SERIES FEMALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .165" (4.20mm) PITCHED |
HGFT |
TERMINAL WIRE-MOUNT |
FEMALE CONTACT W/CRIMP TERMINAL, 360-DEG WALLED TYPE TERMINATING 18-24 AWG WIRES, TO BE USED W/HSGF&HDGF SERIES FEMALE CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HSHS (M/F) |
PCB STRAIGHT |
.200" (5.08mm) PITCHED SINGLE-ROW BOX STRIP SOCKET, PCB STRAIGHT MOUNT .335"(8.50mm) INSU PROFILE USING 360-DEG WALLED FEMALE CONTACTS & .030"Wx.016"T(.76mmWx. 40mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HSHR (M/F) |
PCB R/A |
.200" (5.08mm) PITCHED SINGLE-ROW BOX STRIP SOCKET, PCB RIGHT ANGLE MOUNT .096"(2.45mm) INSU PROFILE USING 360-DEG WALLED FEMALE CONTACTS & .030"Wx.016"T(.76mmWx. 40mmT)BLADE PCB POSTS
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HSHF |
CRIMP HOUSING |
.200" (5.08mm) PITCHED SINGLE-ROW FEMALE STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .045" (1.14mm)SQ MALE CONTACTS, .125"(3.18mm) INSU PROFILE TO BE USED W/HHFT SERIES FEMALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HHFT |
TERMINAL WIRE-MOUNT |
FEMALE CONTACT W/CRIMP TERMINAL, 360-DEG WALLED TYPE TERMINATING 18-24 AWG WIRES, TO BE USED W/HSHF SERIES FEMALE CRIMP HOUSING
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HSHM |
CRIMP HOUSING |
.200" (5.08mm) PITCHED SINGLE-ROW MALE STRIP SOCKET (HOUSING ONLY), CRIMPING TYPE WIRE MOUNT ACCEPTING .045" (1.14mm)SQ FEMALE CONTACTS, .125"(3.18mm) INSU PROFILE TO BE USED W/HHMT SERIES MALE CRIMP TERMINALS
|
| STRIP SOCKET |
|
SINGLE-ROW .200" (5.08mm) PITCHED |
HHMT |
TERMINAL WIRE-MOUNT |
MALE CONTACT W/CRIMP TERMINAL, STAMPED TYPE TERMINATING 18-24 AWG WIRES, TO BE USED W/HSHM SERIES MALE CRIMP HOUSING
|

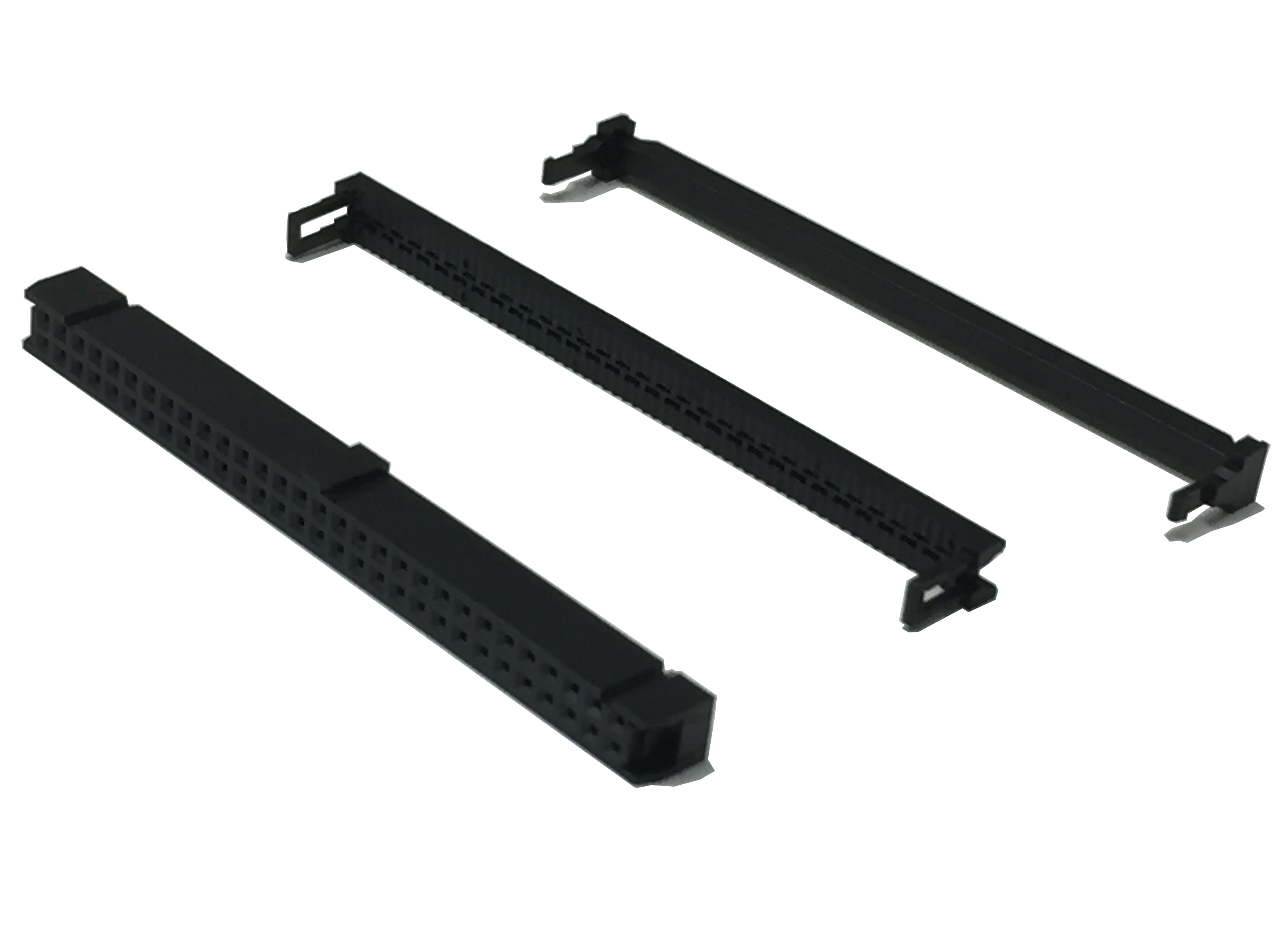

| STRIP SOCKET |
|
DUAL-ROW .100"x.100" (2.54mmx2.54mm) PITCHED |
FCA |
IDC |
.100"x.100" (2.54mmx2.54mm) PITCHED DUAL-ROW STRIP SOCKET, IDC ACCEPTING .050" (1.27MM) PITCHED FLAT RIBBON .528"(13.4mm) INSU PROFILE USING SINGL LEAF W/2-PRONG FORK FEMALE CONTACTS
|
